Getting started with Flutter authentication

2023-07-18

14 minute read

Flutter is Google’s open-source framework to develop cross-platform applications. In this article, we will take a look at how we can implement authentication using Google sign-in to secure our application using the Supabase SDK for Flutter.

We will also dive into the deep ends of Open ID Connect sign-in to better understand how third-party sign-ins are being performed. You can check out the code of the sample in this article here.

Prerequisites

This article assumes you are comfortable with writing a basic application in Flutter. No knowledge of Supabase is required.

We will use the following tools

  • Flutter - we used v3.10.5 for this article
  • Supabase - create your account here if you do not have one
  • IDE of your choosing

What is Open ID Connect?

We will implement third-party login with Google utilizing the Open ID Connect functionality of Supabase Auth. Open ID Connect, or OIDC is a protocol built on top of OAuth 2.0 that allows third-party applications to request the users to provide some personal information, such as name or profile image, in the form of an identity token along with an access token. This identity token can then be verified and decoded by the application to obtain that personal information.

Supabase auth provides signInWithIdToken method where we can sign in a user using their ID token obtained from third-party auth providers such as Google. Upon signing a user with the signInWithIdToken method, Supabase automatically populates the content of the ID token in the Supabase user metadata for easy access to the information. We will be utilizing this feature in this example to display the user profile upon the user signing in.

In today’s example, our app will make a request to Google, obtain the identity token, and we will use it to sign the user in as well as obtain basic user information.

What we will build

We will build a simple app with a login screen and a home screen. The user is first presented with the login screen, and only after they sign in, can they proceed to the home screen. The login screen presents a login button that will kick off a third-party authentication flow to complete the sign-in. The profile screen displays user information such as the profile image or their full name.

Flutter Google sign in

Setup the Flutter project

Let’s start by creating a fresh Flutter project.


_10
flutter create myauthapp

then we can install the dependencies. Change the working directory to the newly created app directory and run the following command to install our dependencies.


_10
flutter pub add supabase_flutter google_sign_in

The supabase_flutter package is used to interact with a Supabase instance. The google_sign_in package is used to implement social sign-in with Google.

We are done installing our dependencies. Let’s set up authentication now.

Configure Google sign-in on Supabase Auth

We will obtain client IDs for iOS, Android, and web from the Google Cloud console, and register them to our Supabase project. The web client ID will be used by the auth server of Supabase to verify the ID token provided by the Google sign-in package.

First, create your Google Cloud project here if you do not have one yet. Within your Google Cloud project, follow the Get an OAuth client ID for the iOS guide, Configure a Google API Console project for Android guide, and Get your backend server's OAuth 2.0 client ID to obtain client IDs for iOS, Android, and web respectively.

Once you have the client IDs, let’s add them to our Supabase dashboard. If you don’t have a Supabase project created yet, you can create one at database.new for free. The name is just an internal name, so we can call it “Auth” for now. The database password won't be used in this example and can be reconfigured later, so press the Generate a password button and let Supabase generate a secure random password. The region should be anywhere close to where you live, or where your users live in an actual production app. Lastly, for the pricing plan choose the free plan that allows you to connect with all major social OAuth providers and supports up to 50,000 monthly active users.

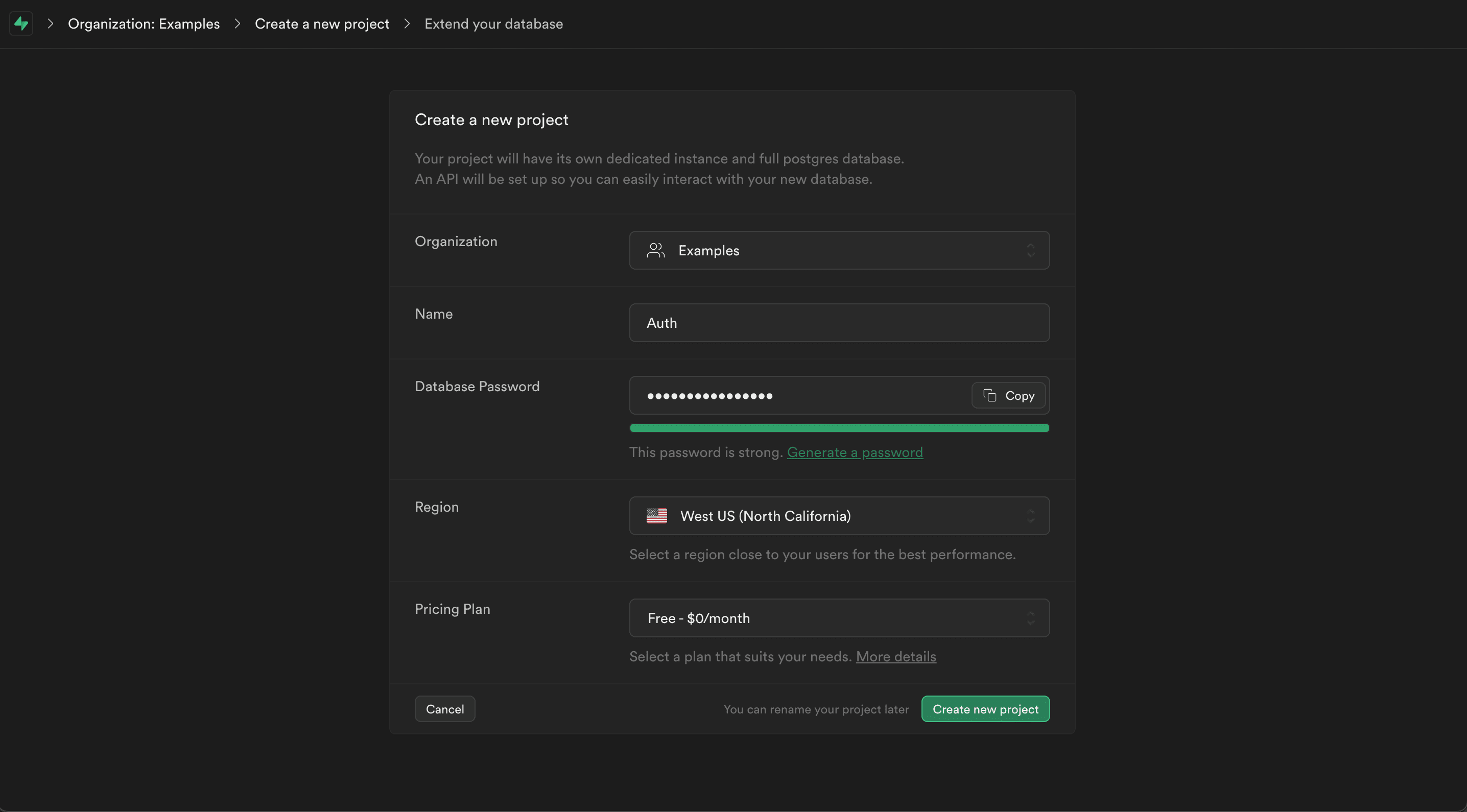

Supabase project creation

Your project should be ready in a minute or two. Once your project is ready, open authentication -> Providers -> Google to set up Google auth. Toggle the Enable Sign in with Google switch first. Then add the web client ID you obtained in your Google Cloud console to Authorized Client IDs field. No need to add the Android or iOS client IDs here.

Turn on the Skip nonce checks option. This would allow us to use the Google sign in package on iOS, which is not compatible with providing a method to access or specify a nonce.

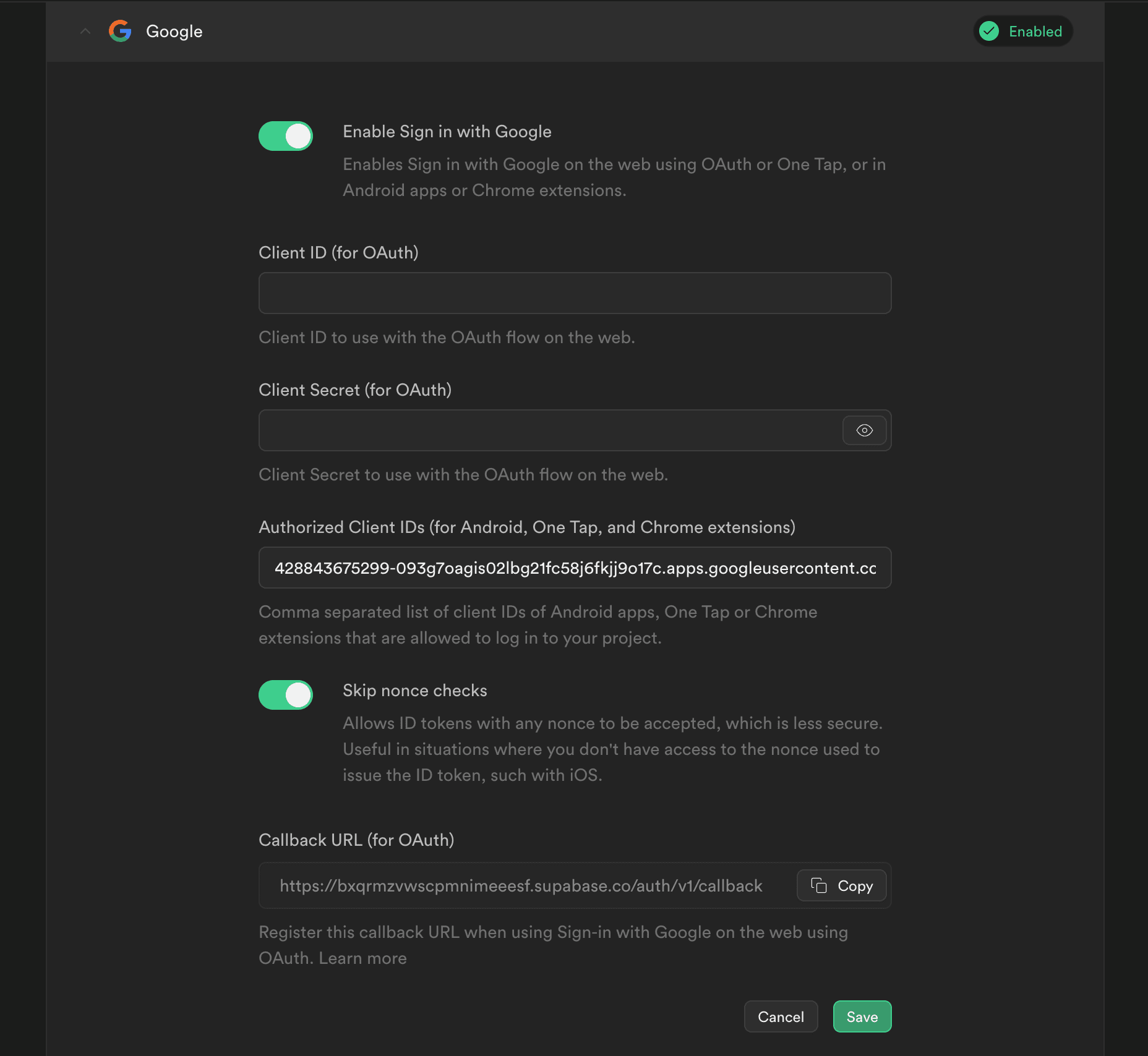

Supabase auth Google auth provider

We also need some iOS specific settings. Open ios/Runner/Info.plist file and add the CFBundleURLTypes like the following. You need to provide the reverse client ID of the iOS client ID you registered earlier.


_13
<key>CFBundleURLTypes</key>
_13
<array>
_13
<dict>
_13
<key>CFBundleTypeRole</key>
_13
<string>Editor</string>
_13
<key>CFBundleURLSchemes</key>
_13
<array>
_13
<!-- TODO Replace this value: -->
_13
<!-- Copied from GoogleService-Info.plist key REVERSED_CLIENT_ID -->
_13
<string>com.googleusercontent.apps.my-ios</string>
_13
</array>
_13
</dict>
_13
</array>

That is it for setting up our Supabase auth to prepare for Google sign-in.

Finally, we can initialize Supabase in our Flutter application with the credentials of our Supabase instance. Update your main.dart file and add Supabase.initialize() in the main function like the following. Note that you will see some errors since the home screen is set to the LoginScreen, which we will create later.


_31
import 'package:flutter/material.dart';
_31
import 'package:myauthapp/screens/login_screen.dart';
_31
import 'package:supabase_flutter/supabase_flutter.dart';
_31
_31
void main() async {
_31
/// TODO: update Supabase credentials with your own
_31
await Supabase.initialize(
_31
url: 'YOUR_SUPABASE_URL',
_31
anonKey: 'YOUR_ANON_KEY',
_31
);
_31
runApp(const MyApp());
_31
}
_31
_31
final supabase = Supabase.instance.client;
_31
_31
class MyApp extends StatelessWidget {
_31
const MyApp({super.key});
_31
_31
@override
_31
Widget build(BuildContext context) {
_31
return MaterialApp(
_31
debugShowCheckedModeBanner: false,
_31
title: 'Flutter Auth',
_31
theme: ThemeData(
_31
colorScheme: ColorScheme.fromSeed(seedColor: Colors.deepPurple),
_31
useMaterial3: true,
_31
),
_31
home: const LoginScreen(),
_31
);
_31
}
_31
}

You can find your Supabase URL and Anon key in Settings -> API from your Supabase dashboard.

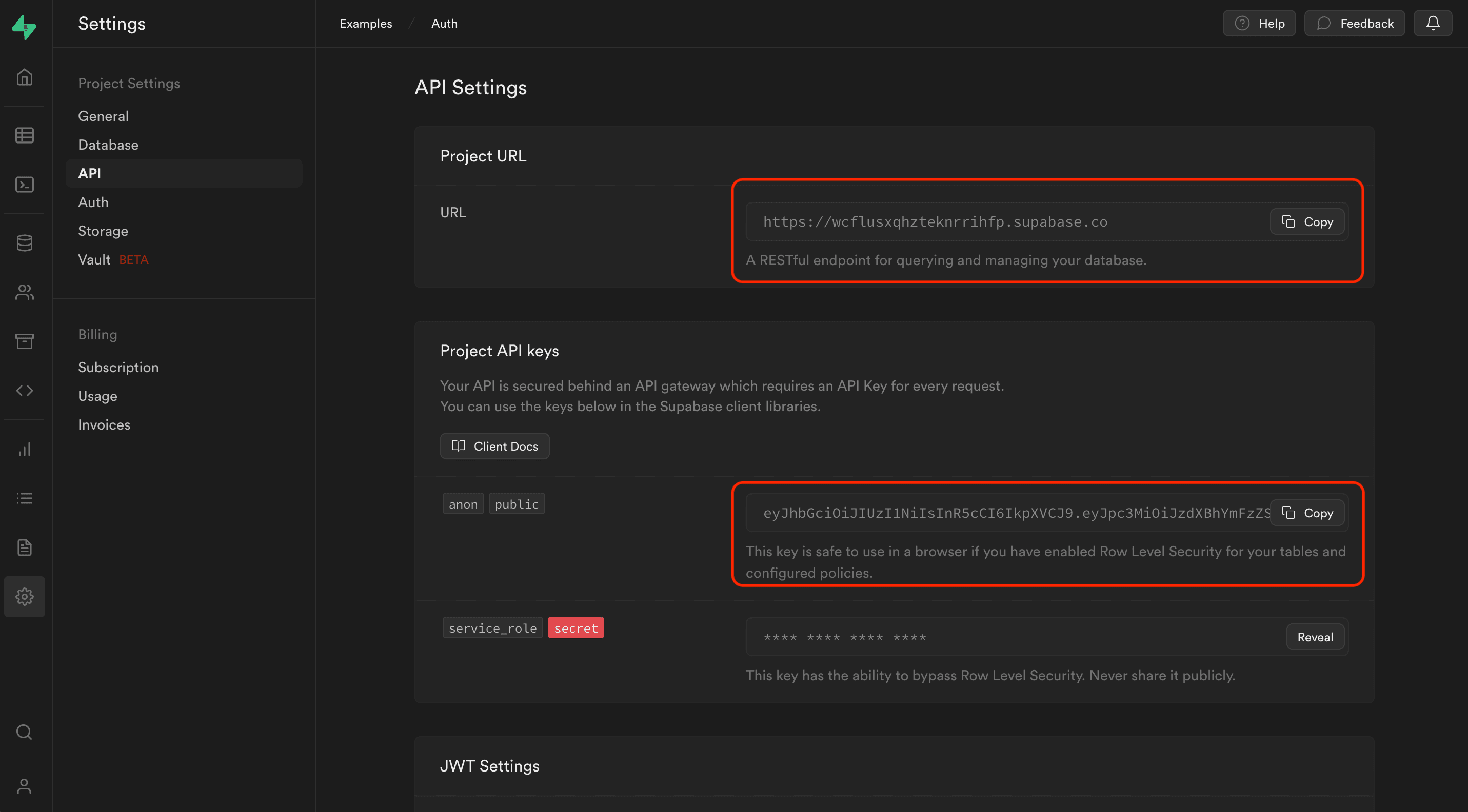

Supabase credentials

Create the Login Screen

We will have two screens for this app, LoginScreen and ProfileScreen. LoginScreen presents a single sign-in button for the user to perform Google sign-in. Create a lib/screens/login_screen.dart file add add the following.


_85
import 'package:flutter/material.dart';
_85
import 'package:google_sign_in/google_sign_in.dart';
_85
import 'package:myauthapp/main.dart';
_85
import 'package:myauthapp/screens/profile_screen.dart';
_85
import 'package:supabase_flutter/supabase_flutter.dart';
_85
_85
class LoginScreen extends StatefulWidget {
_85
const LoginScreen({super.key});
_85
_85
@override
_85
State<LoginScreen> createState() => _LoginScreenState();
_85
}
_85
_85
class _LoginScreenState extends State<LoginScreen> {
_85
@override
_85
void initState() {
_85
_setupAuthListener();
_85
super.initState();
_85
}
_85
_85
void _setupAuthListener() {
_85
supabase.auth.onAuthStateChange.listen((data) {
_85
final event = data.event;
_85
if (event == AuthChangeEvent.signedIn) {
_85
Navigator.of(context).pushReplacement(
_85
MaterialPageRoute(
_85
builder: (context) => const ProfileScreen(),
_85
),
_85
);
_85
}
_85
});
_85
}
_85
_85
Future<AuthResponse> _googleSignIn() async {
_85
/// TODO: update the Web client ID with your own.
_85
///
_85
/// Web Client ID that you registered with Google Cloud.
_85
const webClientId = 'my-web.apps.googleusercontent.com';
_85
_85
/// TODO: update the iOS client ID with your own.
_85
///
_85
/// iOS Client ID that you registered with Google Cloud.
_85
const iosClientId = 'my-ios.apps.googleusercontent.com';
_85
_85
// Google sign in on Android will work without providing the Android
_85
// Client ID registered on Google Cloud.
_85
_85
final GoogleSignIn googleSignIn = GoogleSignIn(
_85
clientId: iosClientId,
_85
serverClientId: webClientId,
_85
);
_85
final googleUser = await googleSignIn.signIn();
_85
final googleAuth = await googleUser!.authentication;
_85
final accessToken = googleAuth.accessToken;
_85
final idToken = googleAuth.idToken;
_85
_85
if (accessToken == null) {
_85
throw 'No Access Token found.';
_85
}
_85
if (idToken == null) {
_85
throw 'No ID Token found.';
_85
}
_85
_85
return supabase.auth.signInWithIdToken(
_85
provider: Provider.google,
_85
idToken: idToken,
_85
accessToken: accessToken,
_85
);
_85
}
_85
_85
@override
_85
Widget build(BuildContext context) {
_85
return Scaffold(
_85
appBar: AppBar(
_85
title: const Text('Login'),
_85
),
_85
body: Center(
_85
child: ElevatedButton(
_85
onPressed: _googleSignIn,
_85
child: const Text('Google login'),
_85
),
_85
),
_85
);
_85
}
_85
}

In terms of UI, this page is very simple, it just has a basic Scaffold with an AppBar, and has a button right in the middle of the body. Upon pressing the button, Google sign in flow starts. The user is presented with a Google authentication screen where they will complete the consent to allow our application to sign the user in using a Google account, as well as allow us to view some personal information.

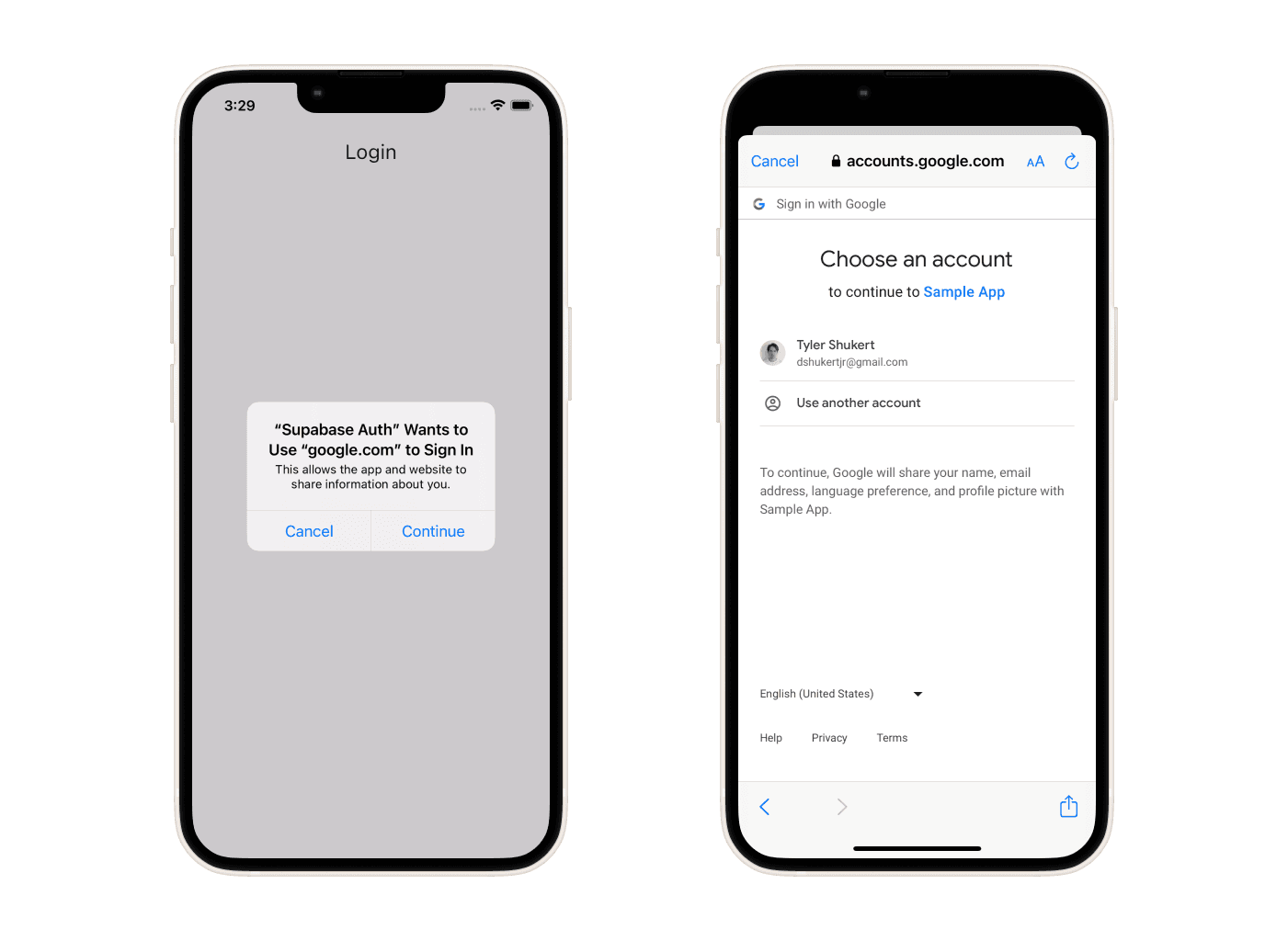

Google sign in

Within the onPressed callback of the button, we are calling the _googleSignIn method. This method calls the Google sign-in package to perform the sign-in flow. Once the user completes the sign-in flow, we obtain an access token and an ID token. We will pass these tokens to Supabase auth to then obtain a Supabase session.

Create the Profile Screen

The ProfileScreen will be just a simple UI presenting some of the information we obtained in the LoginPage. We can access the user data with supabase.auth.currentUser, where Supabase has saved the personal information in a property called userMetadata. In this example, we are displaying the avatar_url and full_name to display a basic profile page. Create a lib/screens/profile_screen.dart file and add the following.


_54
import 'package:flutter/material.dart';
_54
import 'package:myauthapp/main.dart';
_54
import 'package:myauthapp/screens/login_screen.dart';
_54
_54
class ProfileScreen extends StatelessWidget {
_54
const ProfileScreen({super.key});
_54
_54
@override
_54
Widget build(BuildContext context) {
_54
final user = supabase.auth.currentUser;
_54
final profileImageUrl = user?.userMetadata?['avatar_url'];
_54
final fullName = user?.userMetadata?['full_name'];
_54
return Scaffold(
_54
appBar: AppBar(
_54
title: const Text('Profile'),
_54
actions: [
_54
TextButton(
_54
onPressed: () async {
_54
await supabase.auth.signOut();
_54
if (context.mounted) {
_54
Navigator.of(context).pushReplacement(
_54
MaterialPageRoute(builder: (context) => const LoginScreen()),
_54
);
_54
}
_54
},
_54
child: const Text('Sign out'),
_54
)
_54
],
_54
),
_54
body: Center(
_54
child: Column(
_54
mainAxisSize: MainAxisSize.min,
_54
children: [
_54
if (profileImageUrl != null)
_54
ClipOval(
_54
child: Image.network(
_54
profileImageUrl,
_54
width: 100,
_54
height: 100,
_54
fit: BoxFit.cover,
_54
),
_54
),
_54
const SizedBox(height: 16),
_54
Text(
_54
fullName ?? '',
_54
style: Theme.of(context).textTheme.headlineMedium,
_54
),
_54
const SizedBox(height: 32),
_54
],
_54
),
_54
),
_54
);
_54
}
_54
}

And with that, we now have a basic working personalized application that utilizes Google sign-in.

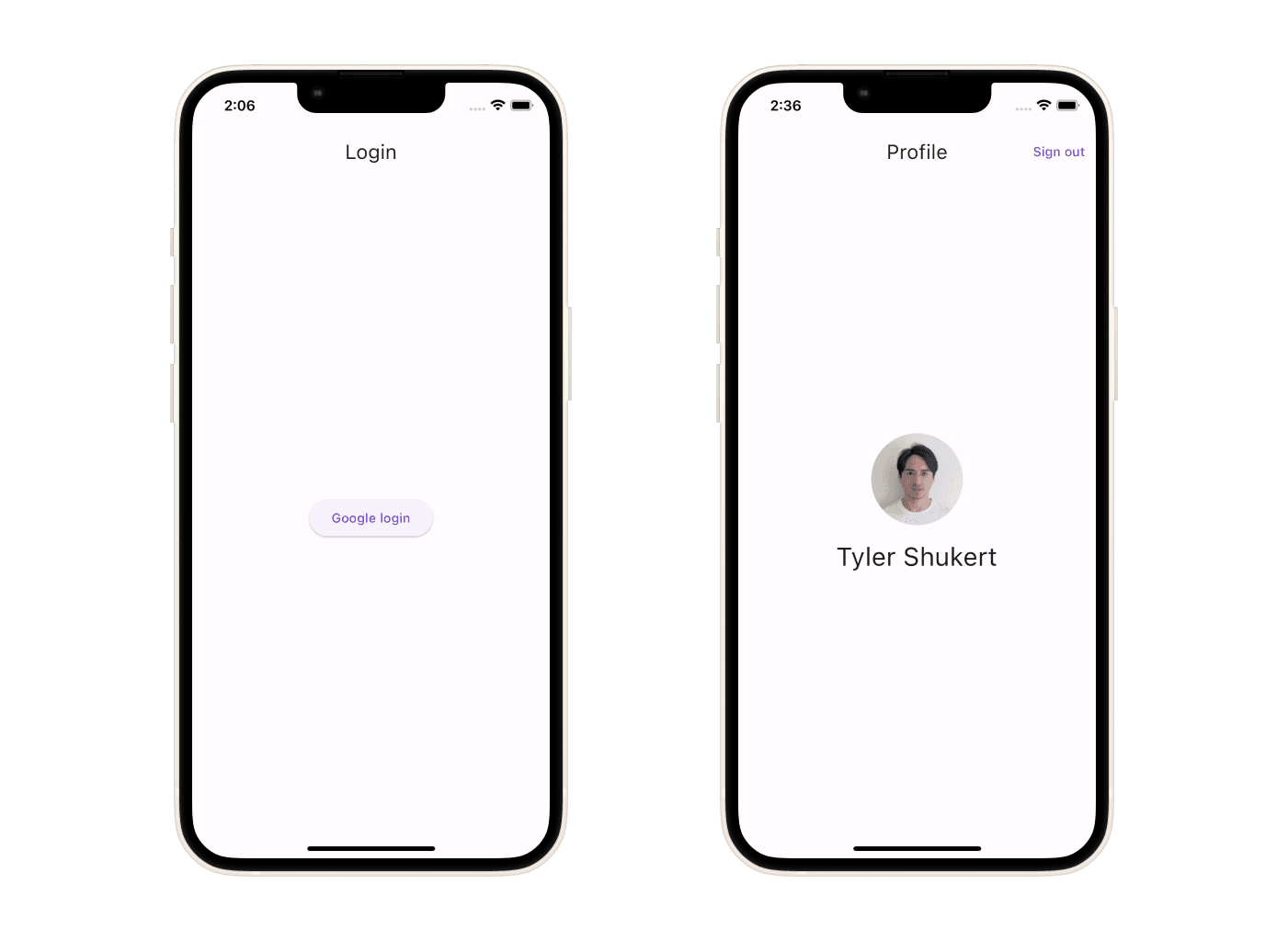

Flutter Google sign in app

Conclusion

In this post, we learned how to implement authentication in a Flutter application using Google sign-in and the Supabase SDK for Flutter. We also delved into the Open ID Connect functionality, which allows third-party sign-ins and the retrieval of personal information through identity tokens.

You can also check out the Flutter reference documents to see how you can use supabase-flutter to implement a Postgres database, Storage, Realtime, and more.
